Specifications:

Internal Clearance:-C0
Ball Screw Application:-Not for Ball Screws
Closure Type:-Single Seal
Precision Rating:-ABEC 7 (ISO Class 4), ABEC 9 (ISO Class 2)
Operating Temperature Range:--30 to +100 °C
Radial Dynamic Load Capacity:-18.6 kN
Radial Static Load Capacity:-15.6 kN
Bearing Material:-Steel (Balls)
Maximum RPM:-32000 RPM
Cage Material:-Phenolic Resin
Finish/Coating:-Uncoated
Outer Ring Width:-12 mm
Fillet Radius:-0.6 mm
Series:-719
Brand FAG (Schaeffler)
Specification Met Ul
Manufacturer FAG (Schaeffler)

Internal Clearance:-C0
Ball Screw Application:-Not for Ball Screws
Closure Type:-Single Seal
Precision Rating:-ABEC 7 (ISO Class 4), ABEC 9 (ISO Class 2)
Operating Temperature Range:--30 to +100 °C

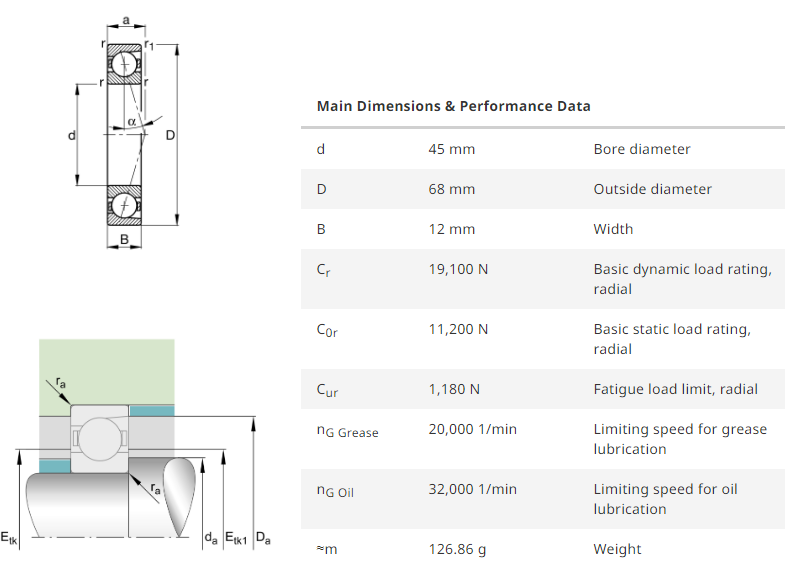

B71909-C-T-P4S-UL Spindle &a Precision Machine Tool Angular Contact Bearing - 45 mm ID, 68 mm OD, 12 mm Width, 15 ° Contact, ABEC 7 (ISO Class 4), ABEC 9 (ISO Class 2), Single Seal

<>FAG B71909-C-T-P4S-UL



PREVIOUS:FAG 7215-B-TVP        NEXT:FAG HC7012-C-T-P4S-UL
