Brand FAG (Schaeffler)
Specification Met Ul
Manufacturer FAG (Schaeffler)
 Specifications:

Row Type &a; Fill Slot:-Single-Row Non-Fill Slot
Internal Clearance:-C0
Closure Type:-Open
Radial Dynamic Load Capacity:-73000 N
Radial Static Load Capacity:-62000 N
Operating Temperature Range:-Maximum of +120 °C
Cage Material:-Polyamide
Outer Ring Width:-25 mm
Maximum RPM:-6300 RPM
Finish/Coating:-Uncoated
Precision Rating:-ABEC 1 (ISO Class Normal)
Fillet Radius:-1.5 mm
Series:-7200
Row Type &a; Fill Slot:-Single-Row Non-Fill Slot
Internal Clearance:-C0
Closure Type:-Open
Radial Dynamic Load Capacity:-73000 N
Radial Static Load Capacity:-62000 N

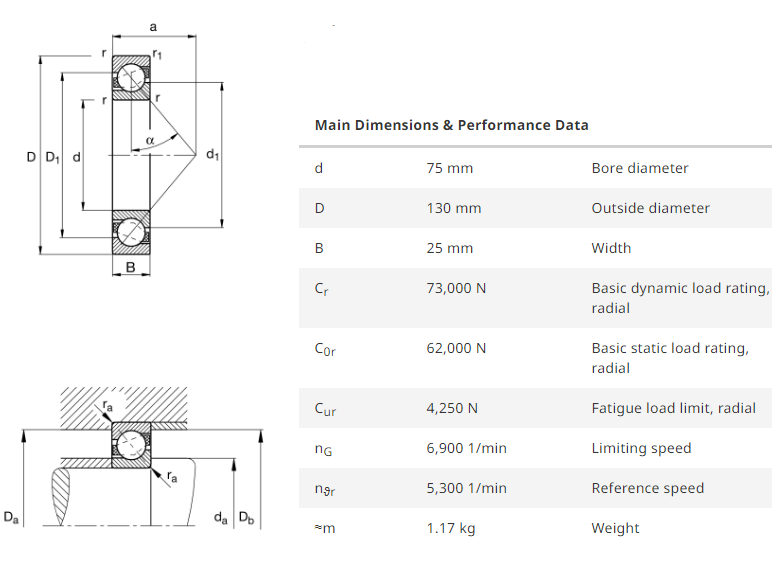

7215-B-TVP Angular Contact Bearing - 75 mm Bore, 130 mm OD, 25 mm Width, Open, 40 ° Contact Angle, C0

<>FAG 7215-B-TVP
