Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 75 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 17300 pounds

Item Diameter 160 millimeters
Item Weight 6.66 pounds
Material Steel Cage
Maximum Rotational Speed 9500 rpm
Measurement System Metric
Model Number 6315-C3
Number of Items 1
Part Number 6315-C3
Specification Met Din 620-4 , Din 623-1 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 25500 pounds

Width 37 millimeters

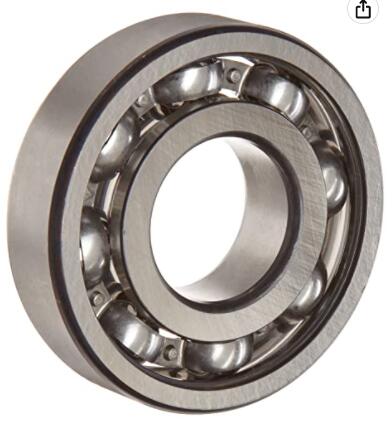

FAG 6315-C3 Deep Groove Ball Bearing, Single Row, Open, Steel Cage, C3 Clearance, Metric, 75mm ID, 160mm OD, 37mm Width, 9500 rpm Maximum Rotational Speed, 17300 lbf Static Load Capacity, 25500 lbf Dynamic Load Capacity

<>FAG 6315-C3 Deep Groove Ball Bearing, Single Row
