Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 45 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 10200 pounds

Inside Diameter 45 millimeters
Item Diameter 120 millimeters
Item Weight 1.00 pounds
Material Alloy Steel
Measurement System Metric
Model Number 6409-C3
Number of Items 1
Part Number 6409-C3
Specification Met Din 620-4 , Din 623-1 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 17300 pounds

Width 29 millimeters

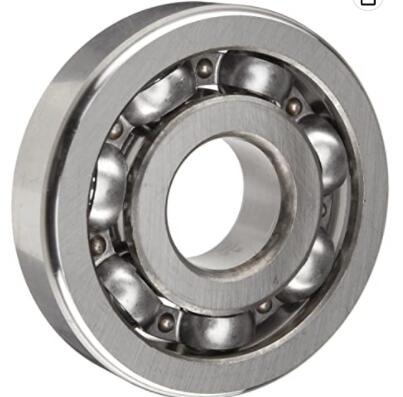

FAG 6409-C3 Deep Groove Ball Bearing, Single Row, Open, Steel Cage, C3 Clearance, Metric, 45mm ID, 120mm OD, 29mm Width, 17300lbf Static Load, 10200lbf Dynamic Load

<>FAG 6409-C3 Deep Groove Ball Bearing
