Cone (inner ring assembly) and cup (outer ring) combine to form a complete single tapered roller bearing

Supports high radial loads and axial loads in one direction between a rotating and non-rotating member
Operating temperatures range from -30 to 120 degrees C (-22 to 250 degrees F)
Sheet steel cage evenly spaces rollers for reduced friction, vibration, and noise
Open configuration for lubrication applied in place
Specifications for this item
Bearing Type ball_bearing
Bore Diameter 80 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Item Diameter 130 millimeters
Item Weight 0.010 ounces
Measurement System Metric
Model Number 33116
Number of Items 1
Part Number 33116-DY
Specification Met Iso
Tolerance Held Standard Tolerance

Width 37 millimeters

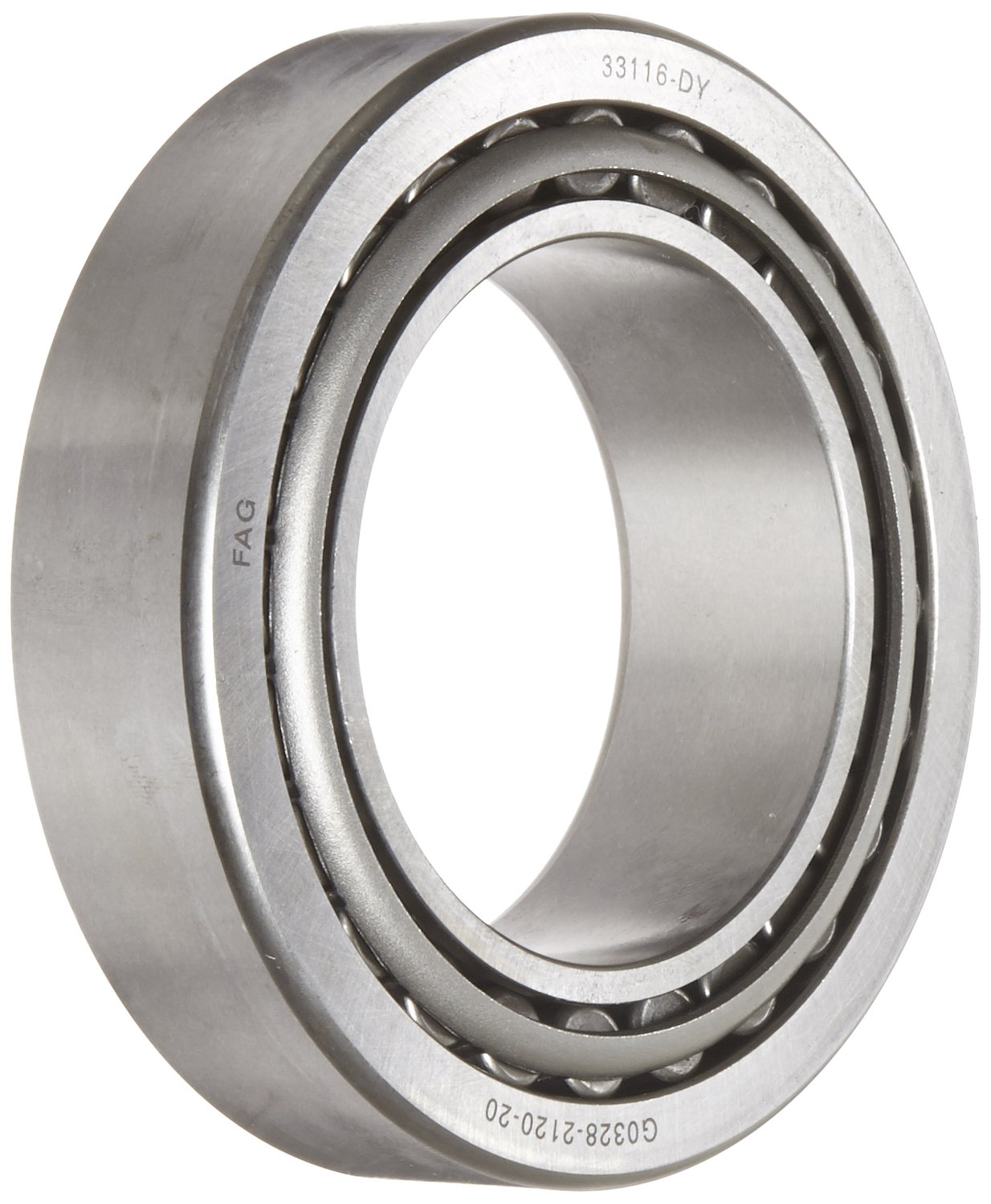

FAG 33116 Tapered Roller Bearing Cone and Cup Set, Standard Tolerance, Metric, 80 mm ID, 130mm OD, 37mm Width, Maximum Rotational Speed

<>$68 FAG 33116 Tapered Roller Bearing Cone and Cup Set
