Brand FAG Bearings

Material Steel Cage
Specification Met Din Iso 281, En 10139, Din 620-4, Din 623-1, Iso 683-17, Din 625-1, Iso 286, Sae J403, Iso 281
Bearing Type Ball Bearing
Compatible Lubricant Grease
About this item
Deep groove geometry for high speeds and supporting both radial and axial loads
“Medium” bearing design for average to above average radial loads and light to average axial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
Sheet steel cage evenly spaces balls for reduced friction, vibration, and noise
Metal shields on both sides of the bearing keep the lubricant in and contaminants out
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 55 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 10600 pounds

Global Trade Identification Number 04012801076913
Item Diameter 120 millimeters
Material Steel Cage
Maximum Rotational Speed 5300 rpm
Measurement System Metric
Number of Items 1
Part Number 6311-2Z-C3
Specification Met Din 620-4 , Din 623-1 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 17000 pounds

Width 29 millimeters

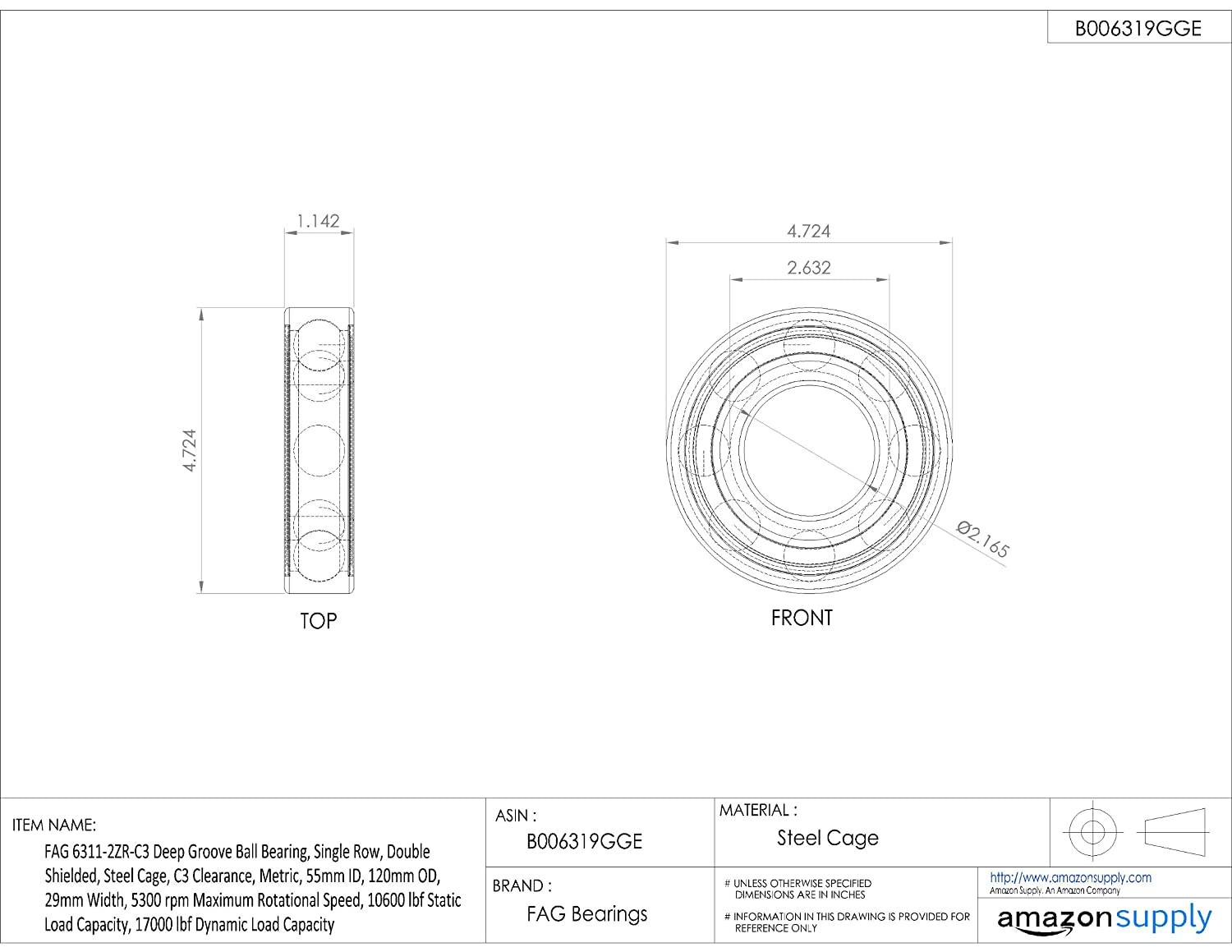

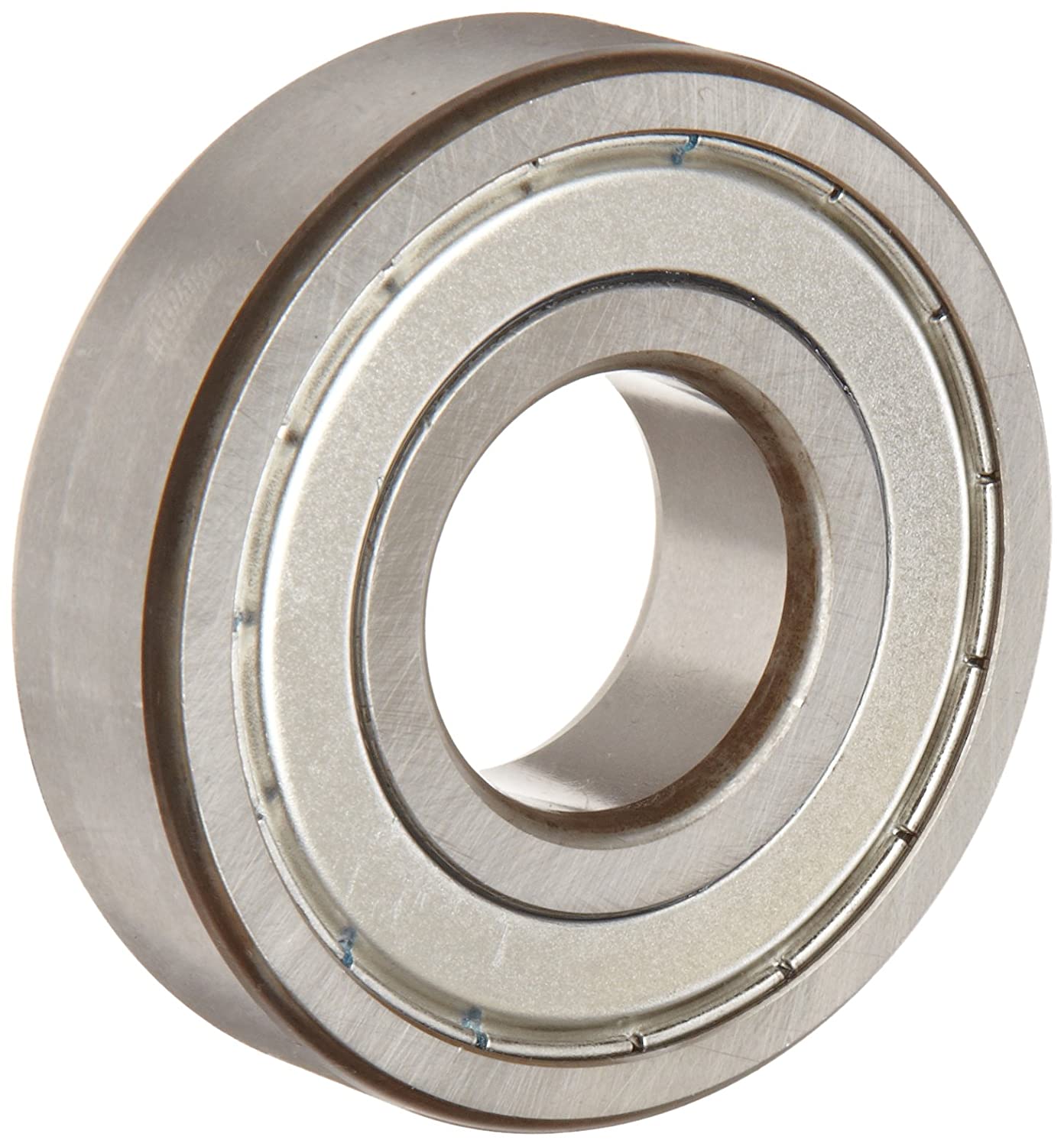

FAG 6311-2ZR-C3 Deep Groove Ball Bearing, Single Row, Double Shielded, Steel Cage, C3 Clearance, Metric, 55mm ID, 120mm OD, 29mm Width, 5300 rpm Maximum Rotational Speed, 10600 lbf Static Load Capacity, 17000 lbf Dynamic Load Capacity

<>$32 FAG 6311-2ZR-C3 Deep Groove Ball Bearing
