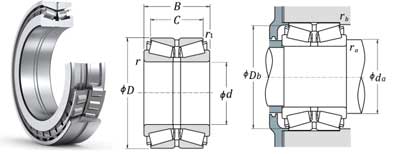

Boundary Dimensions
d 130 mm Bore diameter
D 200 mm Outside diameter
B2 65 mm Total width
C 52 mm Width of outer ring
r (min.) 2.5 mm Chamfer dimension
r1 (min.) 0.6 mm Chamfer dimension
Basic Load Ratings
Cr 395000 N Basic dynamic load rating
C0r 540000 N Basic static load rating
Speeds
Grease 1300 min-1 Grease lubrication
Oil (Oil-bath) 1800 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 145 mm Diameter of shaft abutment
rb (max.) 0.6 mm Radius of housing fillet of outer ring
Db (min.) 192 mm Minimum width of space required in housing on large side face
ra (max.) 2 mm Radius of shaft fillet of inner ring
Calculation factors
e 0.39 Constant
Y2 2.6 Axial load Factors
Y3 1.7 Axial load Factors
Y0 1.7 Axial load Factors
Mass
(approx.) 6.45 kg
130KBE030+L bearing
