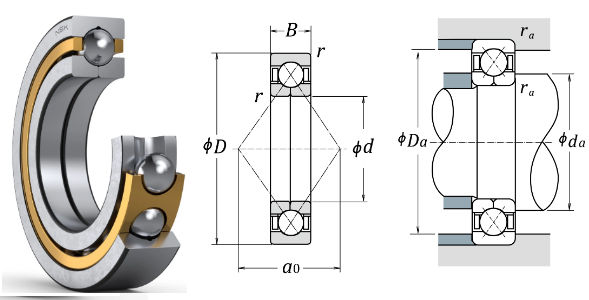

Boundary Dimensions
d
105
mm
Bore diameter
D
160
mm
Outside diameter
B
26
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
127000
N
Basic dynamic load rating
C0a
269000
N
Basic static load rating
Speeds
Grease
3000
min-1
Grease lubrication
Oil (Oil-bath)
4000
min-1
Oil-bath lubrication
Dimensions
a0
92.8
mm
Load center spacings
Abutment and Fillet Dimensions
da (min.)
115
mm
Diameter of shaft abutment
Da (max.)
150
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Mass
(approx.)
2
kg
