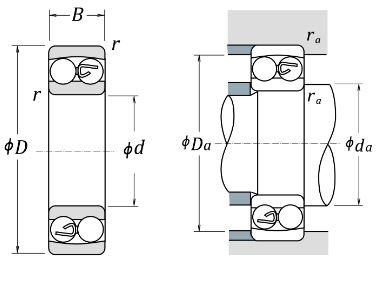

Boundary Dimensions
d 25 mm Bore diameter
D 62 mm Outside diameter
B 24 mm Width
r (min.) 1.1 mm Chamfer dimension
Basic Load Ratings
Cr 27300 N Basic dynamic load rating
C0r 6600 N Basic static load rating
Speeds
Grease 9500 min-1 Grease lubrication
Oil (Oil-bath) 12000 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 31.5 mm Diameter of shaft abutment
Da (max.) 55.5 mm Diameter of housing abutment
ra (max.) 1 mm Radius of shaft or housing fillet
Calculation factors
e 0.46 Constant
Y2 2.1 Axial load Factors
Y3 1.4 Axial load Factors
Y0 1.4 Axial load Factors
Mass
(approx.) 0.319 kg
Associated products

Adapter H2305X Adapter
