Dimensions
Bore diameter 530 mm
Outside diameter 780 mm
Width 475 mm

Product net weight 558 kg

Basic dynamic load rating 7 210 kN
Basic static load rating 17 300 kN
Reference speed 530 r/min
Limiting speed 800 r/min

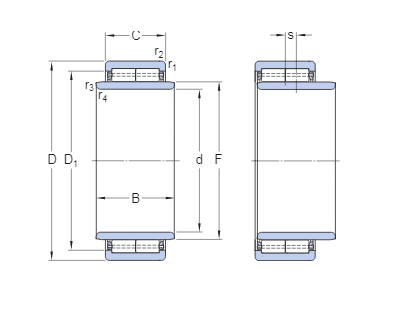

d
530 mm Bore diameter
D
780 mm Outside diameter
B
475 mm Overall bearing width
C
285 mm Width outer ring
D1
≈699 mm Shoulder diameter outer ring
F
590 mm Raceway diameter inner ring
r1,2
min.5 mm Chamfer dimension outer ring
r3,4
min.5 mm Chamfer dimension inner ring
s
max.100 mm Permissible axial displacement from the normal position of one bearing ring relative to the other


<>SKF BC2B 320117/HA4
