Dimensions
Bore diameter 85 mm
Outside diameter 150 mm
Width 36 mm

Product net weight 2.12 kg

Basic dynamic load rating 190 kN
Basic static load rating 200 kN
Reference speed 4 800 r/min
Limiting speed 5 300 r/min
SKF performance classSKF Explorer


d
85 mm Bore diameter
D
150 mm Outside diameter
B
36 mm Width
C
28 mm Width of outer ring
D1
≈130.3 mm Shoulder diameter of outer ring
F
100.5 mm Raceway diameter of inner ring
r1,2
min.2 mm Chamfer dimension
r3,4
min.2 mm Chamfer dimension
s
max.5.3 mm Permissible axial displacement

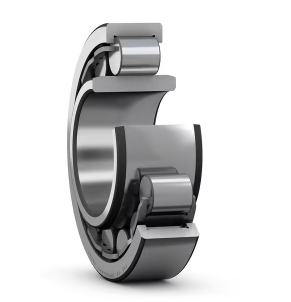

<>SKF NUB 217 ECJ
