Dimensions
Bore diameter 120 mm
Outside diameter 260 mm
Width 55 mm

Product net weight 13.5 kg

Basic dynamic load rating 610 kN
Basic static load rating 620 kN
Reference speed 2 800 r/min
Limiting speed 3 200 r/min
SKF performance classSKF Explorer

d
120 mm Bore diameter
D
260 mm Outside diameter
B
55 mm Width
d1
≈168 mm Shoulder diameter of inner ring
D1
≈217.65 mm Shoulder diameter of outer ring
F
154 mm Raceway diameter of inner ring
r1,2
min.3 mm Chamfer dimension
r3,4
min.3 mm Chamfer dimension of loose flange ring

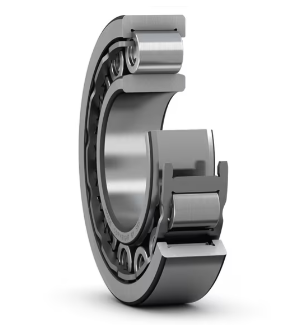

<>SKF NUP 324 ECJ
