Dimensions
Bore diameter 55 mm
Outside diameter 90 mm
Width 18 mm
Product net weight 0.378 kg


Basic dynamic load rating 59.4 kN
Basic static load rating 73.5 kN
Reference speed 8 500 r/min

Limiting speed 11 000 r/min

d	55 mm	Bore diameter
D	90 mm	Outside diameter
B	18 mm	Width
D1	≈79.2 mm	Shoulder diameter outer ring
F	64.5 mm	Raceway diameter inner ring
s	max.0.5 mm	Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2	min.1.1 mm	Chamfer dimension
r3,4	min.1 mm	Chamfer dimension

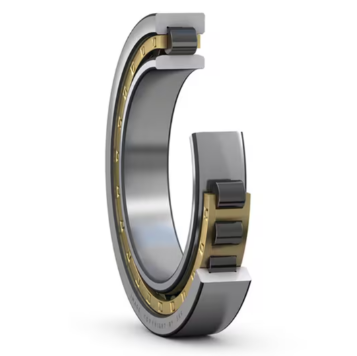

<>skf NU 1011 ECMR/HC5C4VE104
