Dimensions
Bore diameter 530 mm
Outside diameter 780 mm
Width 112 mm
Product net weight 190 kg

Basic dynamic load rating 2 290 kN
Basic static load rating 4 050 kN
Reference speed 800 r/min

Limiting speed 1 000 r/min


d: 530 mm Bore diameter
D: 780 mm Outside diameter
B : 112 mm Width
D1: ≈692 mm Shoulder diameter of outer ring
F : 593 mm Raceway diameter of inner ring
r1,2 min.6 mm Chamfer dimension
s :max.10.4 mm Permissible axial displacement

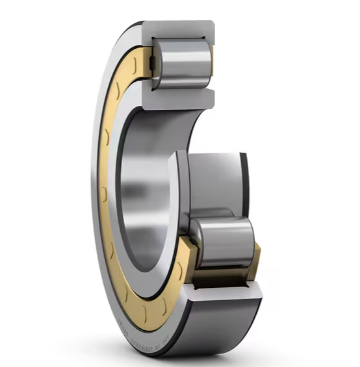

<>SKF NU 10/530 MA
