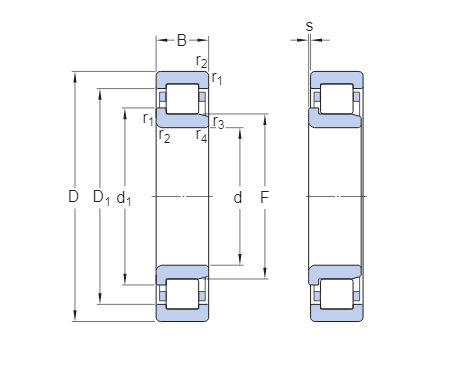

Dimensions

Product net weight:1.44 kg
d
65 mm Bore diameter
D
120 mm Outside diameter
B
31 mm Width
d1
≈84.4 mm Shoulder diameter of inner ring
D1
≈103.2 mm Shoulder diameter of outer ring
F
78.5 mm Raceway diameter of inner ring
r1,2
min.1.5 mm Chamfer dimension
r3,4
min.1.5 mm Chamfer dimension
s
max.1.9 mm Permissible axial displacement


SKF performance class
SKF Explorer
Basic dynamic load rating C
170 kN
Basic static load rating C0
180 kN
Fatigue load limit Pu
24 kN
Reference speed
6 300 r/min
Limiting speed
6 700 r/min
Minimum load factor kr
0.2
Limiting value e
0.3
Calculation factor Y

0.4

<>SKF NJ 2213 ECP
