Product details
Brand
FAG Bearings
Material Brass
Item Weight
15.21 Pounds
Specification Met
Din Iso 281, En 10139, Din 623-1, Iso 683-17, Iso 199, Sae J403, Iso 281
Bearing Type
Ball Bearing
Compatible Lubricant
Grease
Axially asymmetric races with a 40 degree contact angle to support both axial and radial loads
CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision
Brass cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise
Open bearing for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants
Specifications for this item
Bearing Type
Ball Bearing
Bore Diameter
75 millimeters
Brand Name
FAG Bearings
Compatible Lubricant Type
Grease
Ean
4012801284387
Item Diameter
190 millimeters
Item Weight
15.21 pounds
Material
Brass
Measurement System
Metric
Number of Items
1
Part Number
7415-B-MP-UA
Specification Met
Din 623-1 , Iso 281 , Iso 683-17 , Iso 199 , Din Iso 281 , En 10139 , Sae J403
Single Row, Open, 40° Contact Angle, Brass Cage, Normal Clearance, Metric, 75mm ID, 190mm OD, 45mm Width

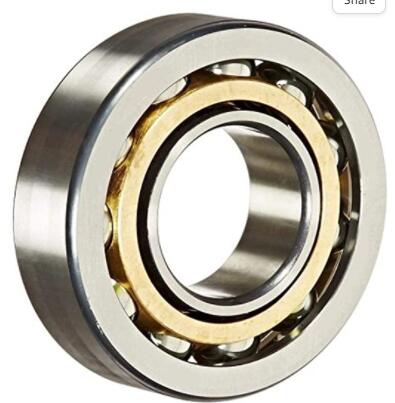

<>FAG 7415B-MP-UA Angular Contact Ball Bearing,
