Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 65 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 13400 pounds

Item Diameter 120 millimeters
Item Weight 1.00 pounds
Material Alloy Steel
Maximum Rotational Speed 13000 rpm
Measurement System Metric
Number of Items 1
Part Number 6213
Specification Met Din 623-1 , Iso 281 , Iso 683-17 , Iso 199 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 9300 pounds

Width 23 millimeters

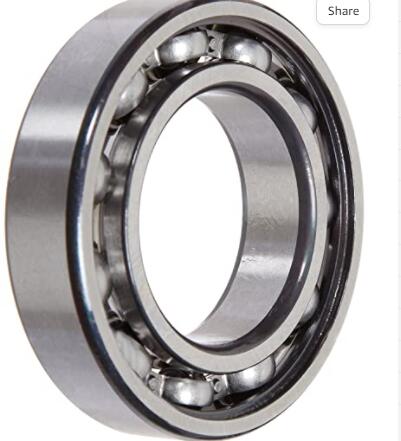

FAG 6213 Radial Bearing, Single Row, ABEC 1 Precision, Open, Steel Cage, Normal Clearance, Metric, 65mm ID, 120mm OD, 23mm Width, 13000rpm Maximum Rotational Speed, 9300lbf Static Load Capacity, 13400lbf Dynamic Load Capacity

<>FAG 6213 Radial Bearing, Single Row,
