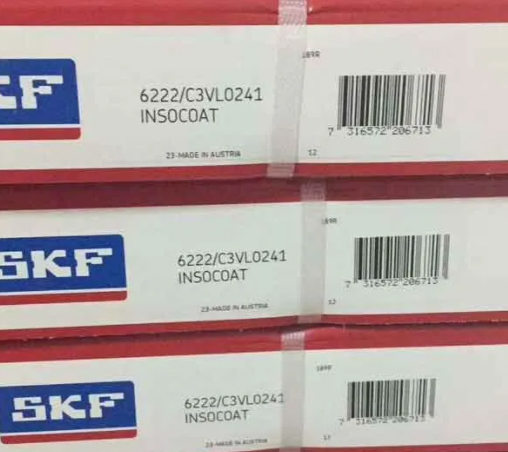

SKF 6222/C3VL0241 Bearing and FAG 6222-C3


SKF 6222/C3VL0241 Price:$105

FAG 6222-C3 Price:$89



SKF 6222/C3VL0241  DIMENSIONS

d
110 mm
Bore diameter
D
200 mm
Outside diameter
B
38 mm
Width
d1
≈138 mm
Shoulder diameter inner ring
D2
≈179 mm
Recess diameter outer ring shoulder
r1,2
min.2.1 mm
Chamfer dimension
Abutment dimensions - 6222/C3VL0241

ABUTMENT DIMENSIONS

da
min.122 mm
Abutment diameter shaft
Da
min.184 mm
Abutment diameter shaft
Da
max.188 mm
Abutment diameter housing
ra
max.2 mm
Fillet radius

CALCULATION DATA

C
151 kN
Basic dynamic load rating
C0
118 kN
Basic static load rating
Pu
4 kN
Fatigue load limit
6 700 r/min
Reference speed
4 300 r/min
Limiting speed
kr
0.025
Calculation factor
f0
14.3
Calculation factor

MASS

4.42 kg
Mass bearing

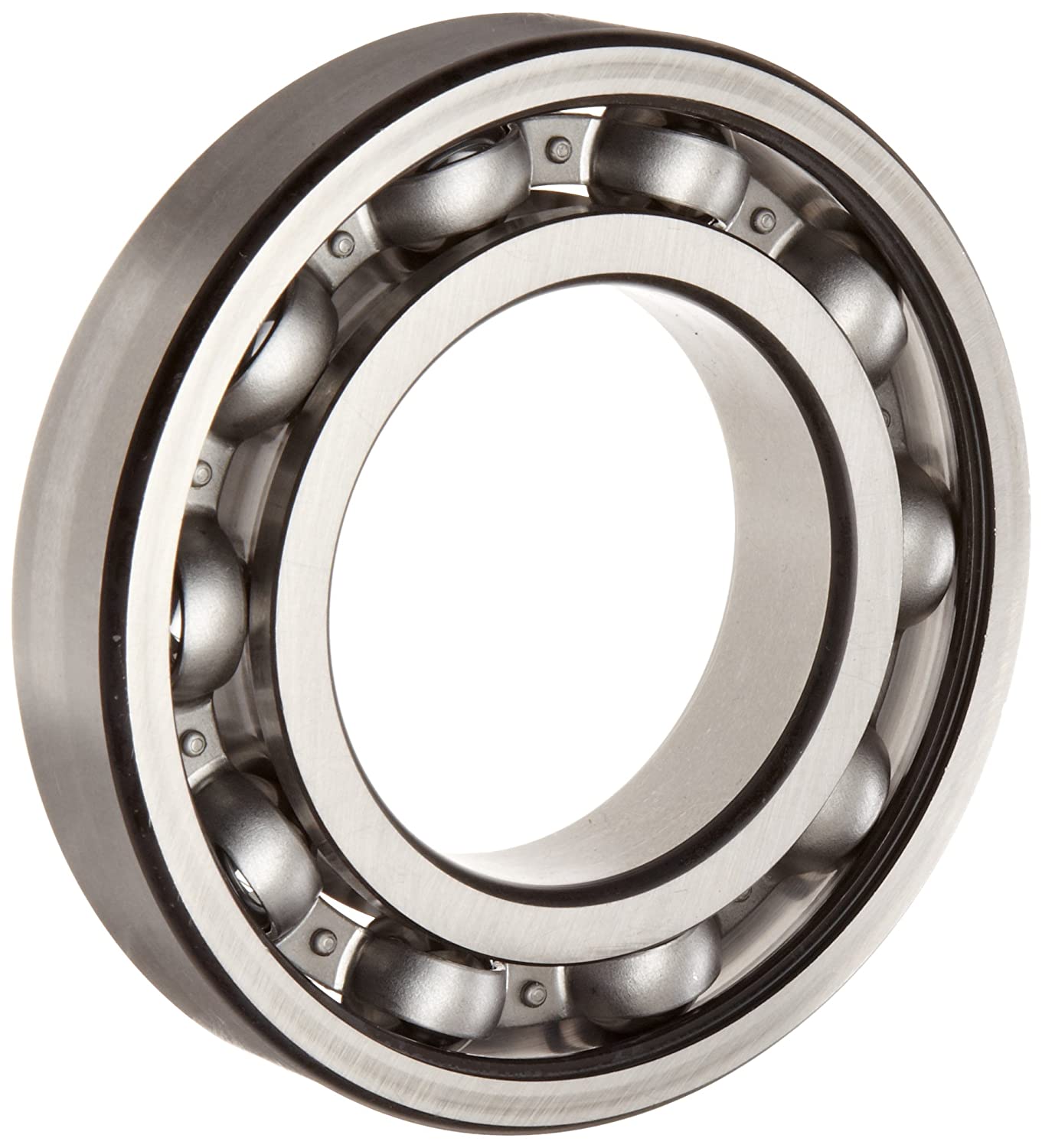

Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 26500 pounds
Ean 4012801203876
Global Trade Identification Number 04012801203876
Item Diameter 200 millimeters
Material Steel Cage
Maximum Rotational Speed 3600 rpm
Measurement System Metric
Model Number 6222C3
Number of Items 1
Part Number 6222-C3
Specification Met Din 623-1 , Din 620-4 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 32200 pounds
UNSPSC Code 31171500
Width 38 millimeters


<>SKF 6222/C3VL0241 Bearing and FAG 6222-C3
