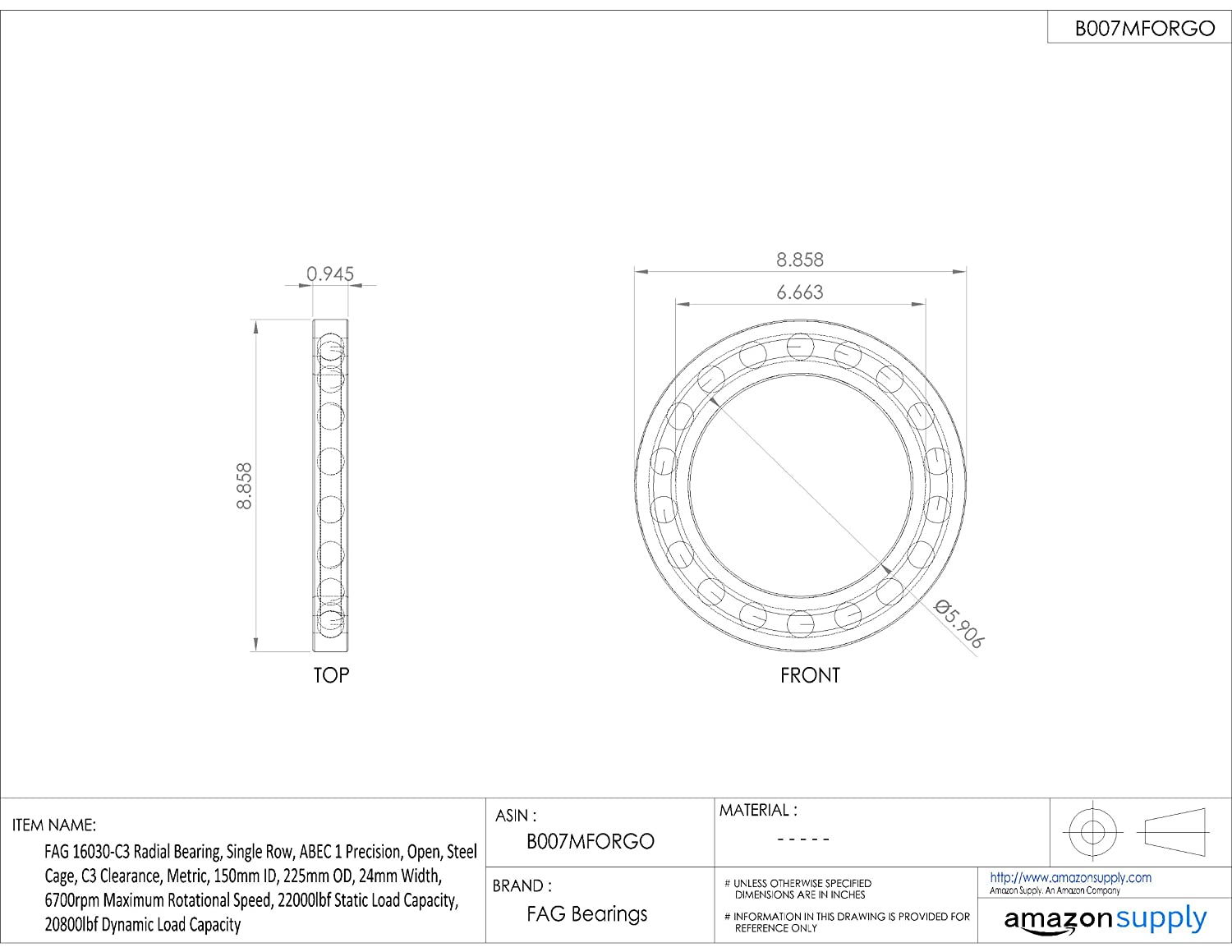

FAG 16030-C3 Radial Bearing, Single Row, ABEC 1 Precision, Open, Steel Cage, C3 Clearance, Metric, 150mm ID, 225mm OD, 24mm Width, 6700rpm Maximum Rotational Speed, 22000lbf Static Load Capacity, 20800lbf Dynamic Load Capacity

Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 150 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 20800 pounds

Item Diameter 225 millimeters
Item Weight 6.77 pounds
Material Alloy Steel
Maximum Rotational Speed 6700 rpm
Measurement System Metric
Number of Items 1
Part Number 16030-C3
Specification Met Iso
Static Load Capacity 22000 pounds
UNSPSC Code 31171500
Width 24 millimeters
